Indicators calculation

[1]:

import geopandas as gpd
import sys
sys.path.append('..')
from transport_frames.indicators import *

Initialization

[2]:

local_crs = 32637

The graph can be obtained by transport_frames.graph.get_graph_from_polygon()

[3]:

import pickle

with open("graph.pkl", "rb") as f:
    graph = pickle.load(f)

Area indicators

Requires the settlement_points - points of interest to calculate distances from.

distrcits_polygons - the polygons for data aggregation on different levels. Can be used for regional, district and settlement levels.

[4]:

districts_polygons = gpd.read_file('/Users/polina/Desktop/github/transport_frames/data/Тульская_область/district.geojson')
settlement_points = gpd.read_file('/Users/polina/Desktop/github/transport_frames/data/Тульская_область/Тульская_область_region_points.geojson')

Distance to administrative center of the region

[5]:

capital =ox.geocode_to_gdf('N34389350',by_osmid=True)

get_distance_to_region_admin_center(capital,settlement_points,districts_polygons,graph).head()

[5]:

	name	geometry	distance_to_admin_center
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	115.7150
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	130.1660
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	81.6420
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	65.2820
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	109.1135

Distance to federal roads

[6]:

get_distance_to_federal_roads(settlement_points,districts_polygons,graph).head()

[6]:

	name	geometry	distance_to_federal_roads
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	36.0405
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	6.7490
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	9.0930
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	4.8230
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	15.5010

Length of the roads

[7]:

get_road_length(graph, districts_polygons).head()

[7]:

	name	geometry	road_length
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	785.520134
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	1213.853873
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	1074.637098
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	1740.825543
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	1042.672048

Density of the roads (km/km^2)

[8]:

get_road_density(graph,districts_polygons).head()

[8]:

	name	geometry	density
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	0.734961
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	1.022120
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	1.120421
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	1.070224
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	0.971176

Length of roads for each reg status

[9]:

get_reg_length(graph,districts_polygons).head()

[9]:

	name	geometry	length_reg_1	length_reg_2	length_reg_3
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	0.000000	284.744026	500.776108
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	107.710276	170.099209	936.044388
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	78.487690	303.526233	692.623175
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	231.395153	262.418172	1247.012218
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	56.924065	206.902682	778.845301

Drive connectivity

[10]:

get_connectivity(settlement_points=settlement_points,
                       area_polygons=districts_polygons,
                       local_crs=local_crs,
                       graph=graph).head()

[10]:

	name	geometry	connectivity
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	127.1600
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	152.1800
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	99.6300
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	105.5100
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	104.6825

Public transport connectivity

public transport graph can be obtained using iduedu.get_all_public_transport_graph

[11]:

with open("pt_graph.pkl", "rb") as f:
    pt_graph = pickle.load(f)

get_connectivity(settlement_points=settlement_points,
                       area_polygons=districts_polygons,
                       local_crs=local_crs,
                       graph=pt_graph).head()

[11]:

	name	geometry	connectivity
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	1366.7475
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	1616.1100
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	876.5050
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	1082.1400
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	1092.9375

Number of the services inside each area polygon.

[8]:

fuel_stations = gpd.read_file(f'/Users/polina/Desktop/github/transport_frames/data/Тульская_область/Копия fuel.geojson')

get_service_count(districts_polygons,service=fuel_stations).head()

[8]:

	name	geometry	service_number
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	1
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	3
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	13
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	26
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	6

Accessibility (min) of the services inside each area polygon. If the service is found inside the area, the accessibility equals to zero.

Based on shortest path in the graph

[13]:

get_service_accessibility(settlement_points, graph, districts_polygons,
                            service=fuel_stations).head()

[13]:

	name	geometry	service_accessibility
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	136.750
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	159.375
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	76.625
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	69.000
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	89.875

Railway road length

[14]:

railway_roads = gpd.read_file(f'/Users/polina/Desktop/github/transport_frames/data/Тульская_область/railway.geojson')

get_railway_length(railway_roads,districts_polygons,local_crs).head()

[14]:

	name	geometry	railway_length_km
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	0.000000
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	20.839681
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	83.893379
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	128.610032
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	82.777041

Number of bus routes intersecting the polygons

[15]:

bus_routes = gpd.read_file('bus_routes.geojson')

get_bus_routes_num(districts_polygons,bus_edges=bus_routes).head()

[15]:

	name	geometry	bus_routes_count
0	Арсеньевский район	POLYGON ((36.27046 53.67571, 36.27343 53.67505...	0
1	Белевский район	POLYGON ((35.89856 53.85018, 35.90015 53.84679...	0
2	Богородицкий район	POLYGON ((37.86240 53.73471, 37.86404 53.72565...	1
3	Веневский район	POLYGON ((37.86087 54.34286, 37.86265 54.34249...	0
4	Воловский район	POLYGON ((37.73668 53.45977, 37.74516 53.45518...	0

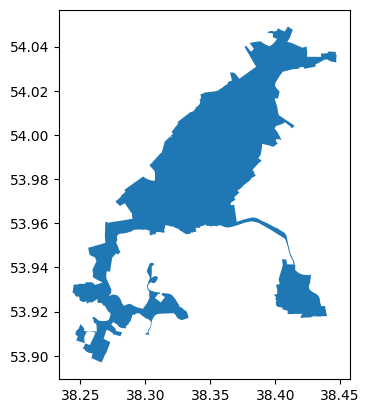

Territory indicators

[16]:

terr = gpd.read_file('territory.geojson')
terr.plot()

[16]:

<Axes: >

../_images/examples_2_indicators_32_1.png

Number of the services inside territory polygon

[24]:

get_terr_service_count(terr,
                            service=fuel_stations,
                            local_crs=local_crs).head()

[24]:

	name	geometry	service_number
0	Донской	POLYGON ((38.19874 53.93203, 38.19961 53.93585...	14

Accessibility (min) of the services inside territory polygon. If the service is found inside the area, the accessibility equals to zero.

Based on shortest path in the graph

[25]:

get_terr_service_accessibility(graph=graph,
                                     territory_polygon=terr,
                                     service=fuel_stations)

[25]:

	name	geometry	service_accessibility
0	Донской	POLYGON ((38.19874 53.93203, 38.19961 53.93585...	0.0

Density of the roads inside territory polygon (km/km^2)

[19]:

get_road_density(graph, terr)

[19]:

	name	geometry	density
0	Донской	POLYGON ((38.24402 53.92843, 38.24521 53.92841...	6.920093

Distance from center of the polygon to the administrative center of the region

[20]:

get_terr_distance_to_region_admin_center(capital, terr, graph)

[20]:

	name	geometry	distance_to_admin_center
0	Донской	POLYGON ((38.19874 53.93203, 38.19961 53.93585...	62.653

Distance (linear) to nature objects (water objects/ nature reserves)

[21]:

water = gpd.read_file(f'/Users/polina/Desktop/github/transport_frames/data/Тульская_область/Копия water.geojson')

get_terr_nature_distance(terr, water, local_crs)

[21]:

	name	geometry	number_of_objects	objects_accessibility
0	Донской	POLYGON ((38.24402 53.92843, 38.24521 53.92841...	31	0.0

Shortest distance to nearest district and settlement points, which are laying in intersecting districts

[22]:

get_terr_nearest_centers(terr, graph, districts_polygons,
                               settlement_points,local_crs)

[22]:

	name	geometry	to_nearest_center_km
0	Донской	POLYGON ((38.24402 53.92843, 38.24521 53.92841...	2.242

Number of bus routes intersecting the territory

[23]:

get_bus_routes_num(terr, bus_edges=bus_routes).head()

[23]:

	name	geometry	bus_routes_count
0	Донской	POLYGON ((38.24402 53.92843, 38.24521 53.92841...	1

Railway road length

[24]:

get_railway_length(railway_roads,terr,local_crs).head()

[24]:

	name	geometry	railway_length_km
0	Донской	POLYGON ((38.24402 53.92843, 38.24521 53.92841...	41.102397
